Mega Compact Utility Grapple

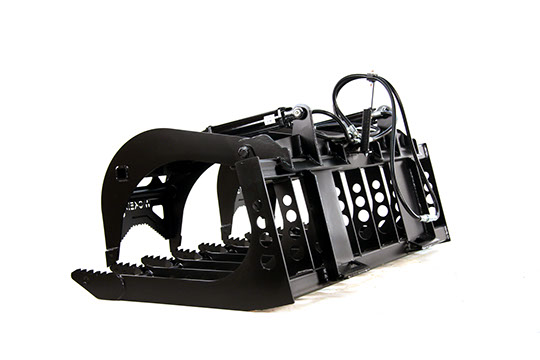

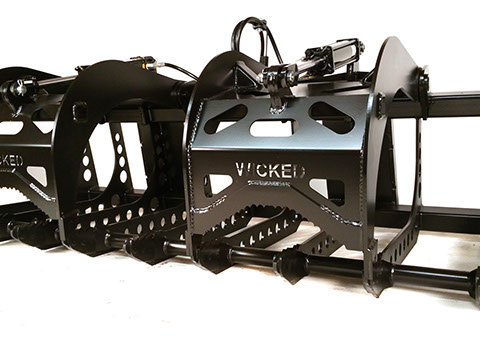

Mega Compact Utility Tractor Root Grapple

This awesome root grapple is available with 1 or 2 lids, in 53 or 77 inch widths. This grapple is designed for larger compact tractors, and keeps the weight down under 700 lbs. The laser cut quality makes this a great looking root grapple made from 3/8" A572 steel. The hydraulic cylinders have a 2" bore and a 10" stroke creating lots of clamping force. The serrated and laminated end tines are a stronger grade 80 steel to keep them from bending when digging roots below grade. The hydraulic hoses are a standard 58" long with 1/2" ag couplers, but maybe extended or made with different couplers if desired.

• A572 steel for extra strength
• Cylinders have 2" bore and 10" stroke
• Opens full 42 1/2"
• End tines are 80 grade steel
